Round floor socket GES R2 - perfectly adapted and versatile in use
Advantages of the GES R2 floor socket
- Simple, high-quality, extremely high load capacity
- Small, isolated supply points
- Wide range of cover variants ensure perfect adaptation to any room situation

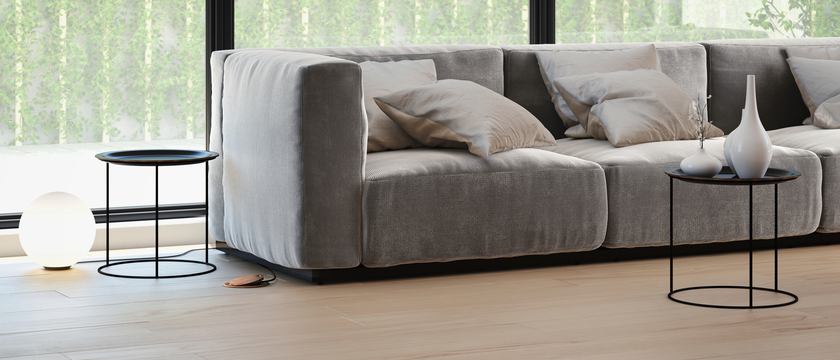

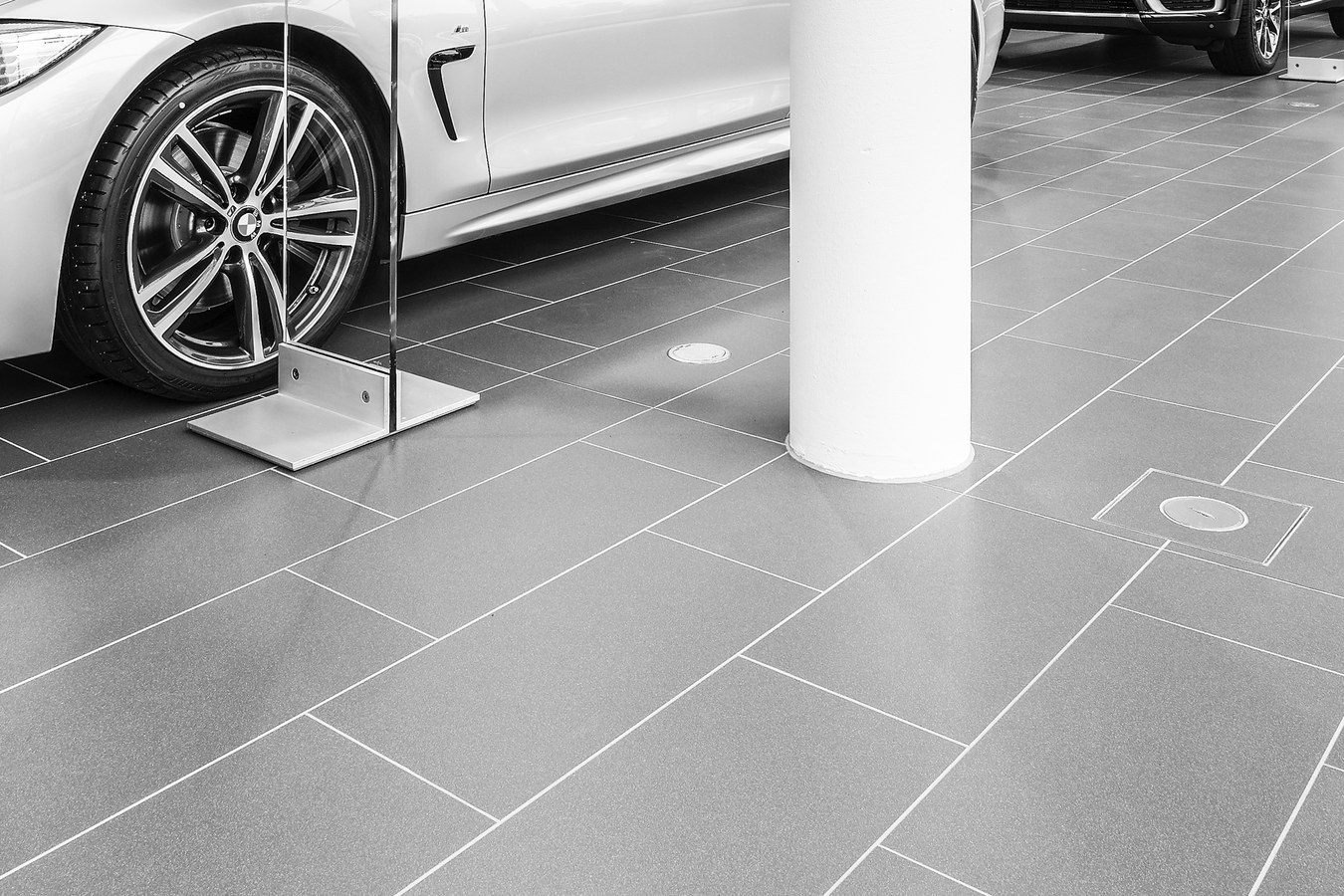

- Discreet power and data supply from the floor
- IP66 protection type for all metal cover variants
- Space for two Modul 45 units and two data technology connections
Frequently asked questions about the GES R2 floor socket
What are the basic types?
Each with an external dimension of 140 mm diameter

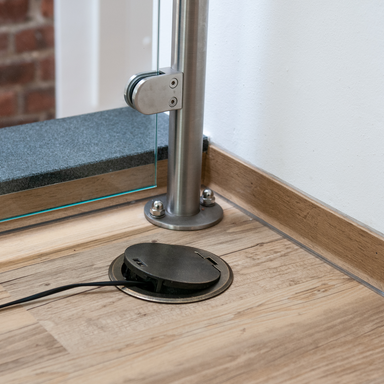

Hinged cover with locking slider

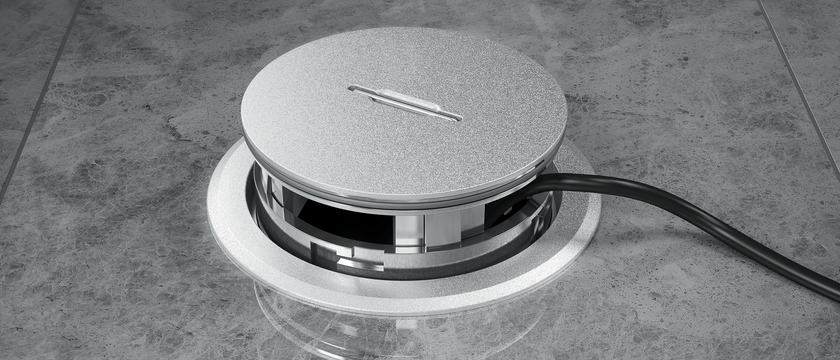

Tube body with handle clamp
Blanking lid

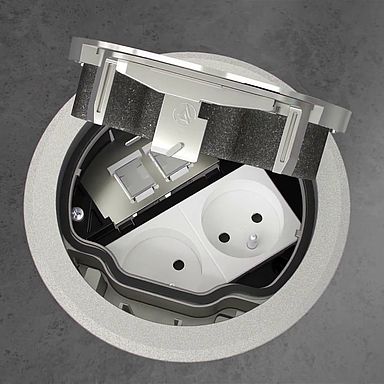

How many installation devices can be installed in the floor socket GES R2?
2x Modul 45 | 2x data technology

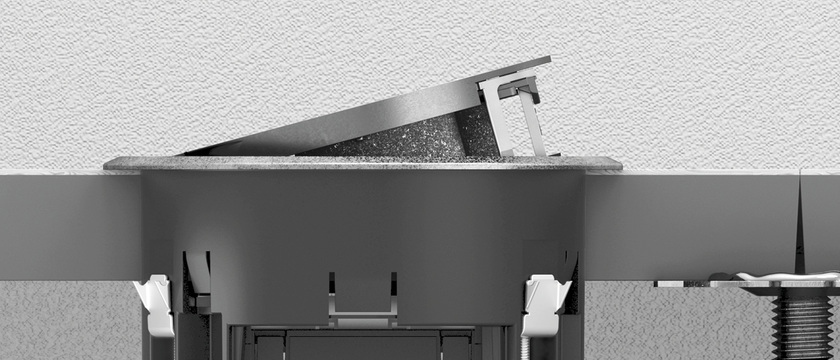

How high must the floor structure be?
The minimum installation height from the top edge of the floor is 85 mm. Installation can take place in screed constructions or in raised and cavity floors. In screed constructions, installation takes place in a height-adjustable screed socket with a height-adjustment range of 85 to 130 mm via simple 3-point height adjustment. A further height increase with accessories is also possible.
What types of floor care are possible?
When the floor is cleaned, the tube body seals the closed installation space against the ingress of water. If the tube body cover is open, a seal in the lower ring of the installation socket offers protection against the ingress of water.
The GES R2 floor socket with tube body thus fulfils the requirements for service outlets in wet-care floors according to EN 50085-2-2. In addition, when completely closed, the GES R2 floor socket with hinged cover fulfils these requirements for use in wet-care rooms.

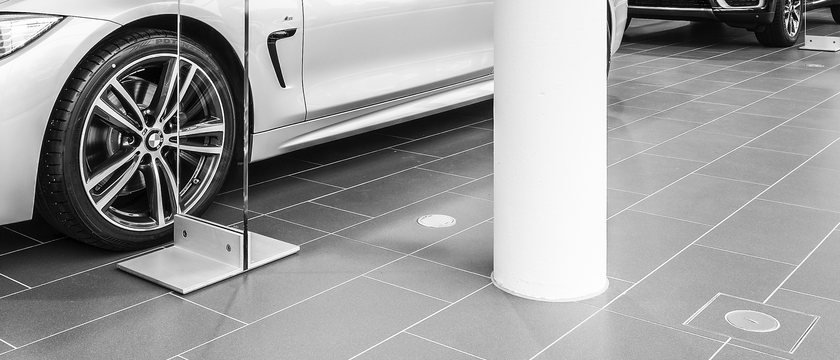

What is the load capacity of the GES R2 floor socket
The GES R2 fulfils the EN 50085 2-2 standard and is designed for high load requirements of up to 2 t.

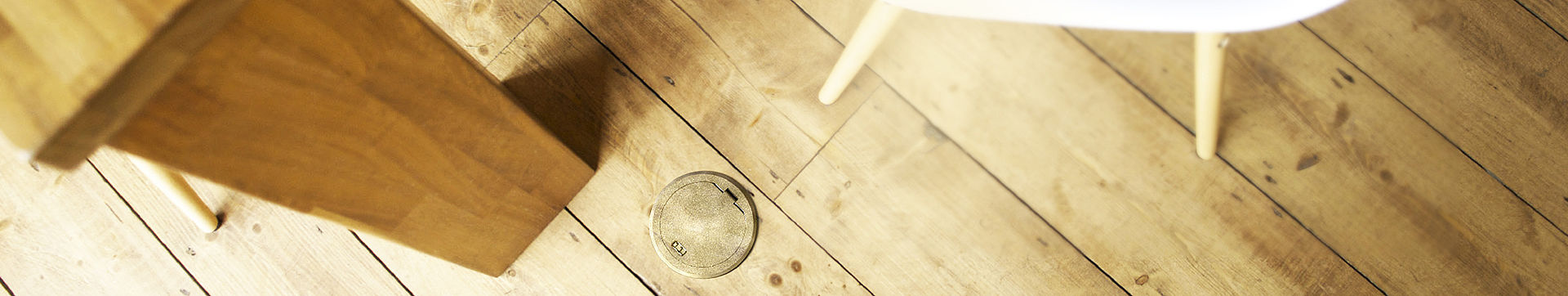

Which floor covering is suitable for the product?

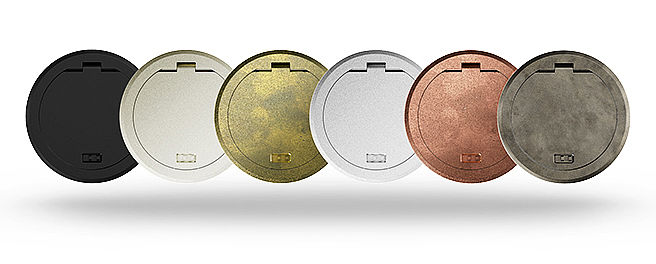

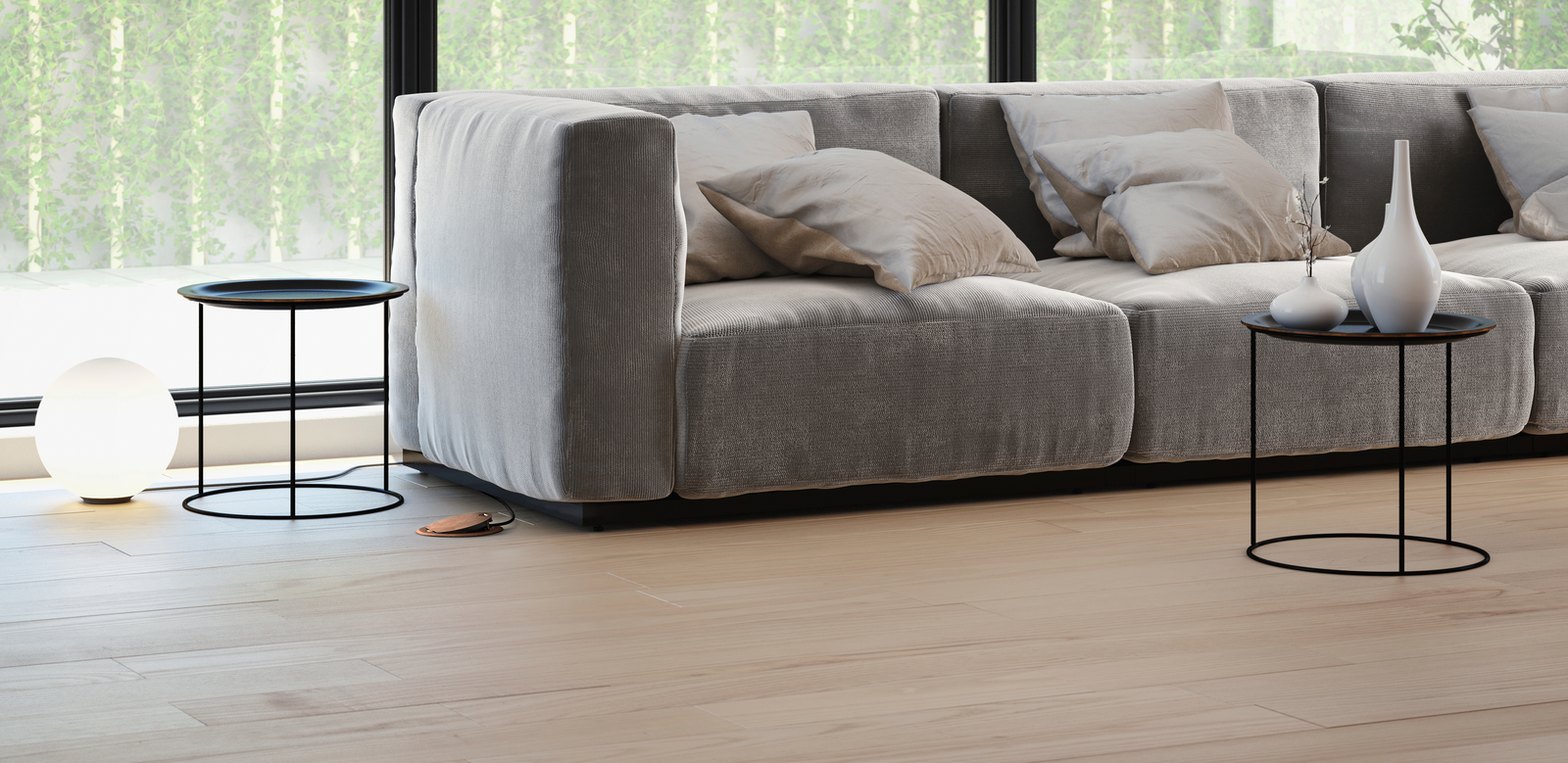

The GES R2 floor sockets are suitable for all floor coverings. They are available in these surfaces:
| Metal variants | Plastic variants | |
| Nickel | Copper | Iron grey |
| Brass | Nickel-oxidised | Graphite black |
| Chrome | Black | |
